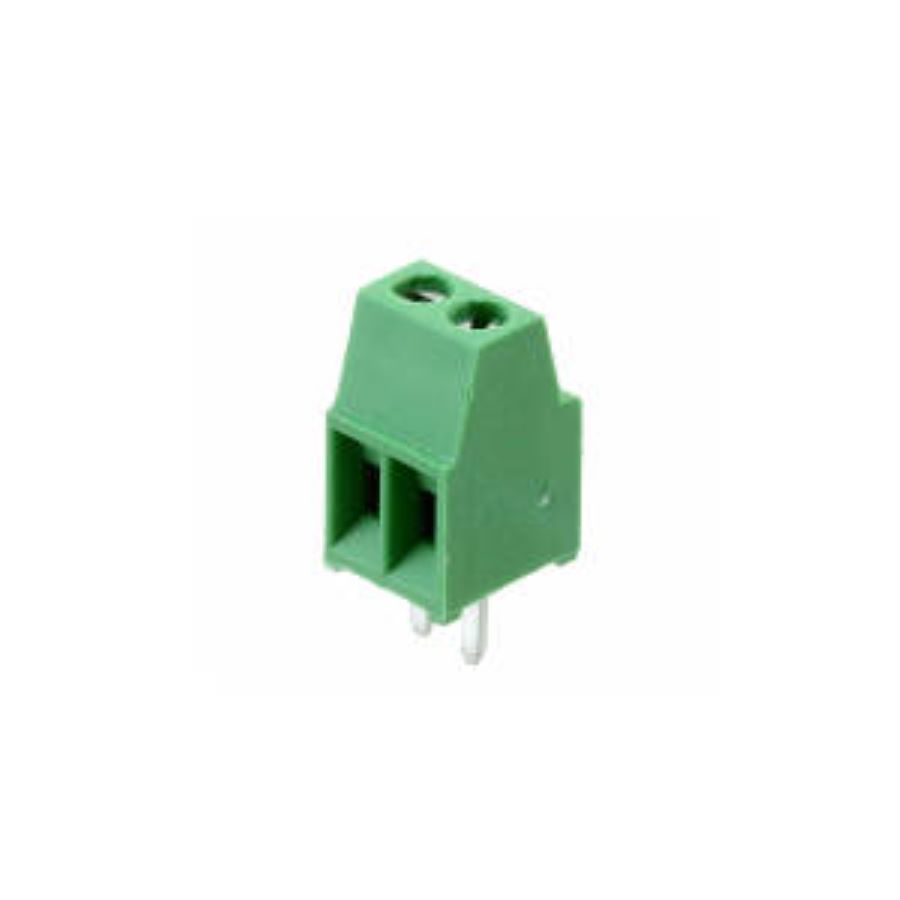

282834-2
Manufacturer:
TE Connectivity
Mfr.Part #:
282834-2
Datasheet:
Description:
Terminal Blocks Through Hole 2 2.54 mm 10 A 150 V 30 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 5.54 mm |
| Width | 6.5 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.3 mm |
| Packaging | Bulk |
| Voltage Rating | 150 V |
| Depth | 6.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 150 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Number of Circuits | 2 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| ELV | Compliant |
| Number of Poles | 2 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Thread Size | M1.6 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 150 V |
| Max Supply Voltage (AC) | 150 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Green |
| Plating | Brass, Steel |
| Tail Length | 3.4 mm |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 16 AWG |
